FEATURES
| 800PSI/PN16 | Investment Casting |
| Locking Device Handle(Option) | PED97/23/EC(CE0035) Approved |
| <span Casting Approved AD2000-WO | Inspection Testing: API598,EN12266 |
| Thread: ASME B1.20.1 BS21.DIN2999/259,ISO228-1, JIS B 0203,ISO7/1 | |
MATERIAL LIST
| ITEM | DESIGNATION | MATERIAL |
| 1 | BODY | CF8/CF8M |
| 2 | SCREEN | SUS304 |
| 3 | GASKET | PTFE |
| 4 | BONNET | CF8/CF8M |
| 5 | DISCHARGE PLUG | CF8/CF8M |

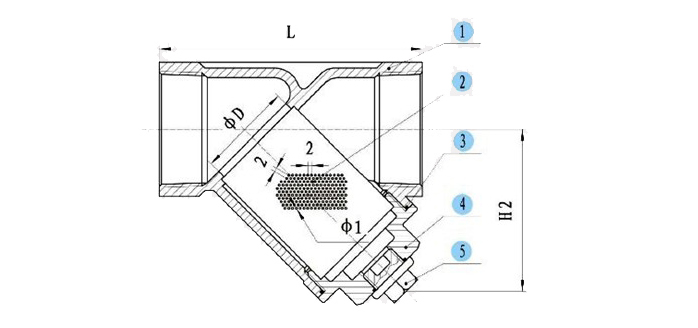

DIMENSION TABLE
| SIZE ITEM | 1/4\\\'\\\' | 3/8\\\'\\\' | 1/2\\\'\\\' | 3/4\\\'\\\' | 1\\\'\\\' | 11/4\\\'\\\' | 11/2\\\'\\\' | 2\\\'\\\' | 21/2\\\'\\\' | 3\\\'\\\' |
| D | 10 | 12 | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 76 |
| H2 | 51 | 51 | 51 | 60 | 72 | 77 | 87 | 103 | 121 | 137 |
| L | 65 | 65 | 65 | 80 | 90 | 105 | 120 | 140 | 183 | 198 |
| L1 | 225 | 225 | 225 | 245 | 256 | 260 | 275 | 334 | 345 | 365 |
