FEATURES
| 1000PSI/PN63 | Reduce Port |
| Investment Casting | Blow-out Proof Stem |
| Sanitary Design | PED97/23/EC(CE 0035) Approved |
| Casting Approved AD2000-W0 | Inspection Testing: API598,EN12266 |
| Thread: ASME B1.20.1 BS21.DIN2999/259,ISO228-1, JIS B 0203, ISO7/1 | |

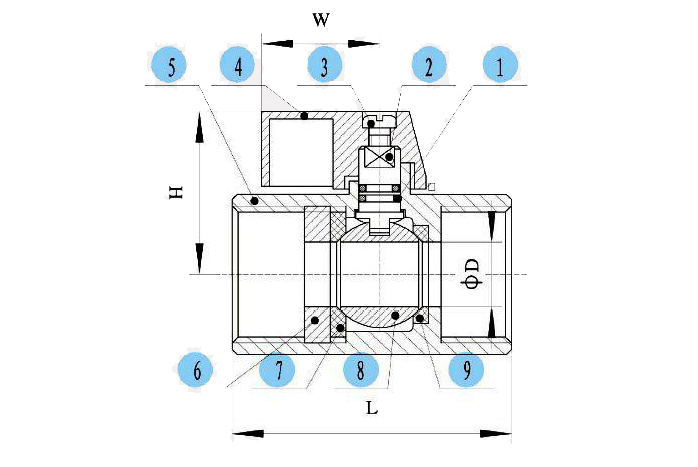

MATERIAL LIST
| ITEM | DESIGNATION | MATERIAL |
| 1 | O-RING | NBR |
| 2 |
STEM | SUS304 |
| 3 | BOLT | SUS304 |
| 4 | LEVER | ALUMINUM ALLOY |
| 5 | BODY | CF8/CF8M |
| 6 | CAP | CF8/CF8M |
| 7 | BALL SEAT(A) | RPTFE |
| 8 | BALL | CF8/CF8M |
| 9 |
BALL SEAT(B) |
RPTFE |
DIMENSION TABLE
| SIZE ITEM | 1/4\\\\\\\'\\\\\\\' | 3/8\\\\\\\'\\\\\\\' | 1/2\\\\\\\'\\\\\\\' | 3/4\\\\\\\'\\\\\\\' | 1\\\\\\\'\\\\\\\' |
| D | 7 | 7 | 9.2 | 12.5 | 15 |
| H | 26.5 | 26.5 | 28.3 | 31.5 | 34 |
| W | 22.8 | 22.8 | 22.8 | 22.8 | 22.8 |
| L | 42 | 42 | 46 | 54 | 65 |
