FEATURES
| 200PSI(PN16) | Investment Casting |
| PED97/23/EC(CE 0035) Approved | Casting Approved AD2000-W0 |
| Inspection Testing: API598,EN12266 | |
| Thread: ASME B1.20.1 BS21.DIN2999/259,ISO228-1, JIS B 0203,ISO7/1 | |

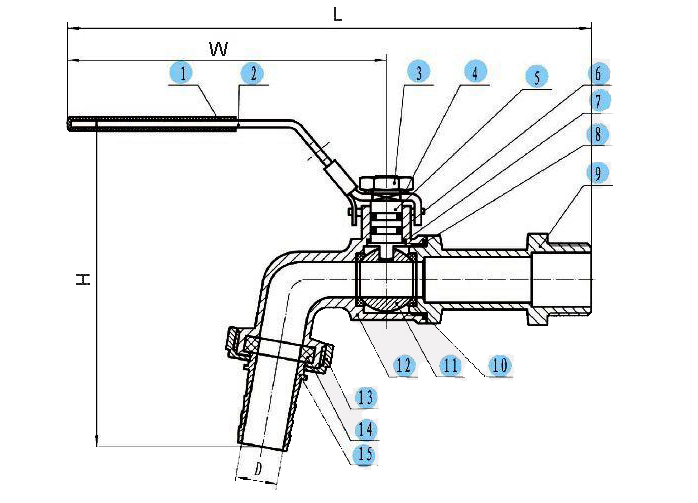

MATERIAL LIST
| ITEM | DESIGNATION | MATERIAL |
| 1 | PLASTIC COVER | PLASTIC |
| 2 | HANDLE | SUS304 |
| 3 | STEM NUT | SUS304 |
| 4 | THRUST WASHER | SUS304 |
| 5 | STEM | SUS304 |
| 6 | O-RING | NBR |
| 7 | STEM SEAL | PTFE |
| 8 | BODY SEAL | PTFE |
| 9 | CAP | CF8/CF8M |
| 10 | SEAT | RPTFE |
| 11 | BALL | CF8/CF8M |
| 12 |
BODY | CF8/CF8M |
| 13 |
NUT | CF8/CF8M |
| 14 |
RING |
NBR |
| 15 |
HOSE | CF8/CF8M |
DIMENSION TABLE
| SIZE ITEM | 1/2 | 3/4 | 1 |
| D | 12 | 16 | 20 |
| H | 91 | 102 | 116 |
| D1 | 92 | 92 | 92 |
| L | 138 | 158 | 145 |
