FEATURES
| 200PSI/PN16 | Investment Casting |
| Locking Device Handle(Option) | PED97/23/EC(CE0035) Approved |
| Casting Approved AD2000-WO | Inspection Testing: API598,EN12266 |
| Thread: ASME B1.20.1 BS21.DIN2999/259,ISO228-1, JIS B 0203,ISO7/1 | |

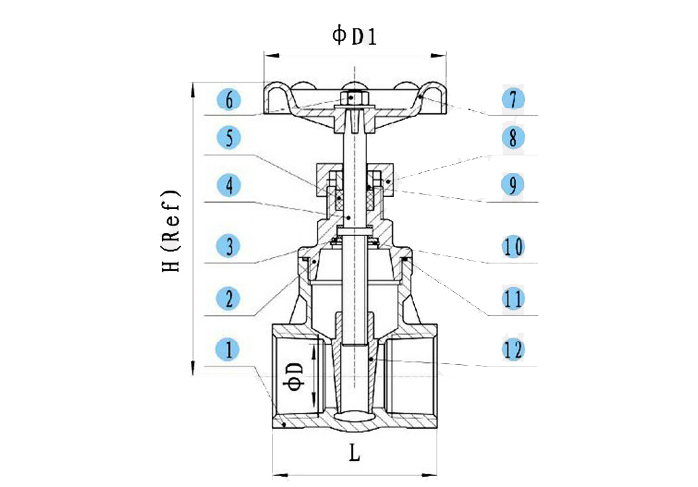

MATERIAL LIST
| ITEM | DESIGNATION | MATERIAL |
| 1 | BODY | CF8/CF8M |
| 2 | PETAL | CF8/CF8M |
| 3 | STEM | SUS304 |
| 4 | GASKET | PTFE |
| 5 | CAP | CF8/CF8M |
| 6 | WASHER | SUS304 |
| 7 | NUT | SUS304 |
| 8 | RING | SUS304 |
| 9 | HANDWHEEL | ALUMINUM ALLOY |
| 10 | GLAND RING | SUS304 |
| 11 | STEM PACKING | PTFE |
DIMENSION TABLE
| SIZE ITEM | 1/2 | 3/4 | 1 | 11/4 | 11/2 | 2 |
| D | 15 | 20 | 25 | 32 | 40 | 50 |
| H | 100 | 106 | 118 | 134 | 152 | 172 |
| D1 | 70 | 70 | 80 | 80 | 100 | 100 |
| L | 66 | 80 | 90 | 105 | 120 | 141 |
