FEATURES
| 200PSI/PN16 | Investment Casting |
| Locking Device Handle(Option) | PED97/23/EC(CE0035) Approved |
| Casting Approved AD2000-WO | Inspection Testing: API598,EN12266 |
| Thread: ASME B1.20.1 BS21.DIN2999/259,ISO228-1, JIS B 0203,ISO7/1 | |

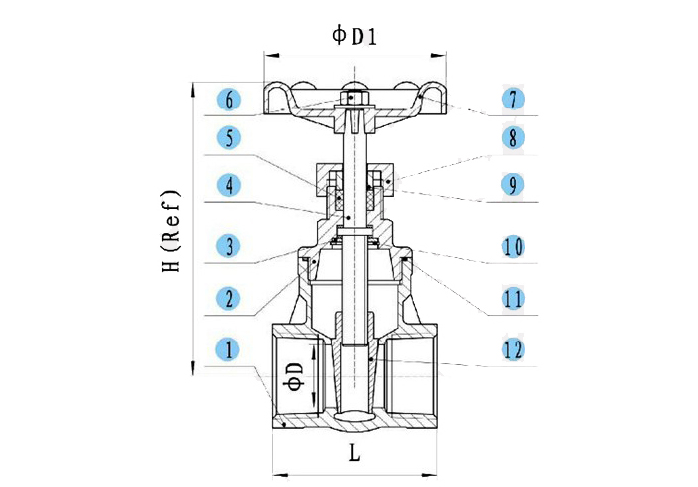

MATERIAL LIST
| ITEM | DESIGNATION | MATERIAL |
| 1 | BODY | CF8/CF8M |
| 2 | BONNET | CF8/CF8M |
| 3 | STOP RING | SUS304 |
| 4 | STEM | SUS304 |
| 5 | PACKING | PTFE |
| 6 | HANDWHEEL NUT | SUS304 |
| 7 | HANDWHEEL | ALUMINUM ALLOY |
| 8 | PACKING NUT | SUS304 |
| 9 | RING | SUS304 |
| 10 | LOCK NUT | SUS304 |
| 11 | GASKET | PTFE |
| 12 | DISC | CF8/CF8M |
DIMENSION TABLE
| SIZE ITEM | 1/2 | 3/4 | 1 | 11/4 | 11/2 | 2 |
| D | 15 | 20 | 25 | 32 | 40 | 50 |
| H | 92 | 99 | 113 | 128 | 147 | 168 |
| D1 | 70 | 70 | 80 | 80 | 100 | 100 |
| L | 55 | 60 | 66 | 76 | 86 | 96 |
