FEATURES
| 200PSI/PN16 | Investment Casting |
| Locking Device Handle(Option) | PED97/23/EC(CE0035) Approved |
| Casting Approved AD2000-WO | Inspection Testing: API598,EN12266 |
| Thread: ASME B1.20.1 BS21.DIN2999/259,ISO228-1, JIS B 0203,ISO7/1 | |
MATERIAL LIST
| ITEM | DESIGNATION | MATERIAL |
| 1 | BONNET | CF8/CF8M |
| 2 | GASKET | PTFE |
| 3 | BODY | CF8/CF8M |
| 4 | HANGER PIN | SUS304 |
| 5 | PLUG GASKET | PTFE |
| 6 | DISC | CF8/CF8M |
| 8 | BODY PACKING | PTFE |

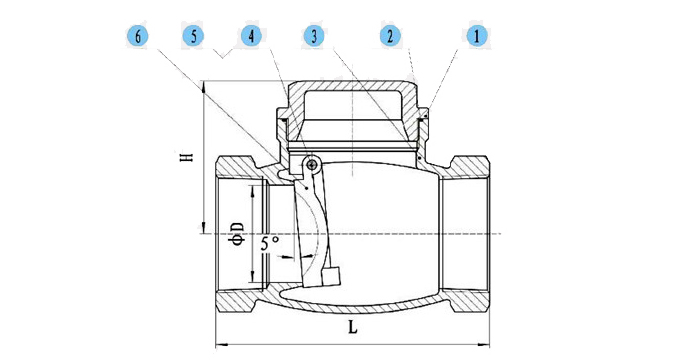

DIMENSION TABLE
| SIZE ITEM | 1/2 | 3/4 | 1 | 11/4 | 11/2 | 2 | 21/2 | 3 |
| D | 15 | 20 | 25 | 32 | 38 | 50 | 62 | 75 |
| H | 41 | 53 | 60 | 60 | 75 | 79 | 90 | 100 |
| L | 65 | 80 | 90 | 105 | 120 | 140 | 156 | 188 |
