FEATURES
| 1000PSI/PN16 | Investment Casting |
| Locking Device Handle(Option) | PED97/23/EC(CE0035) Approved |
| Casting Approved AD2000-WO | Inspection Testing: API598,EN12266 |
| Thread: ASME B1.20.1 BS21.DIN2999/259,ISO228-1, JIS B 0203,ISO7/1 | |
MATERIAL LIST
| ITEM | DESIGNATION | MATERIAL |
| 1 | BODY | CF8/CF8M |
| 2 | CAP | CF8/CF8M |
| 3 | SEAL PACKING | PTFE |
| 4 | DISC | SUS304/SUS316 |
| 5 | SPRING | SUS304/SUS316 |
| 6 | STOPPER | SUS304/SUS316 |
| 7 | BOLT | SUS304 |
| 8 | NUT | SUS304 |

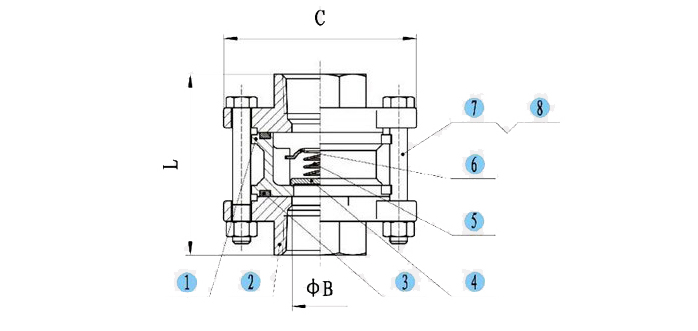

DIMENSION TABLE
| SIZE ITEM | 1/4\\\'\\\' | 3/8\\\'\\\' | 1/2\\\'\\\' | 3/4\\\'\\\' | 1\\\'\\\' | 11/4\\\'\\\' | 11/2\\\'\\\' | 2\\\'\\\' | 21/2\\\'\\\' | 3\\\'\\\' | 4\\\'\\\' |
| B | 8 | 10 | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 |
| C |
56 | 56 | 65 | 70 | 78 | 86 | 102 | 118 | 145 | 158 | 185 |
| L |
61 | 61 | 69 | 74 | 80 | 95 | 101 | 114 | 136 | 146 | 174 |
