FEATURES
| 200PSI/PN16 | Investment Casting |
| Locking Device Handle(Option) | PED97/23/EC(CE0035) Approved |
| Casting Approved AD2000-WO | Inspection Testing: API598,EN12266 |
| Thread: ASME B1.20.1 BS21.DIN2999/259,ISO228-1, JIS B 0203,ISO7/1 | |

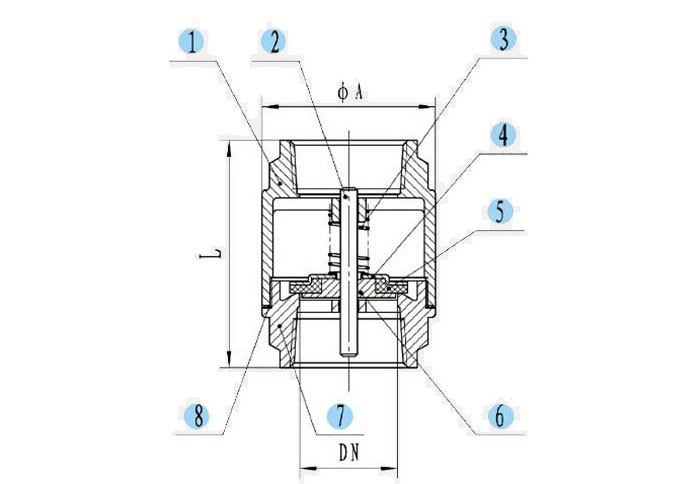

MATERIAL LIST
| ITEM | DESIGNATION | MATERIAL |
| 1 | BODY | CF8/CF8M |
| 2 | STEM | SUS304/SUS316 |
| 3 | SPRING | SUS304/SUS316 |
| 4 | STOCK | SUS304/SUS316 |
| 5 | SEAT | NBR/VITON |
| 6 | PRESS CAP | SUS304/SUS316 |
| 7 | CAP | CF8/CF8M |
| 8 | BODY PACKING | PTFE |
DIMENSION TABLE
| SIZE ITEM | 3/8\\\'\\\' | 1/2\\\'\\\' | 3/4\\\'\\\' | 1\\\'\\\' | 11/4\\\'\\\' | 11/2\\\'\\\' | 2\\\'\\\' | 21/2\\\'\\\' | 3\\\'\\\' | 4\\\'\\\' |
| DN | 13 | 15 | 20 | 25 | 31 | 40 | 50 | 65 | 76 | 94 |
| A | 30 | 34.5 | 41.5 | 48 | 60.5 | 71 | 87 | 110 | 125 | 155 |
| L | 54 | 57 | 64 | 75 | 82 | 93 | 100 | 120 | 140 | 158 |
| L1 | 225 | 225 | 225 | 245 | 256 | 260 | 275 | 334 | 345 | 365 |
