FEATURES
| 800PSI/PN40 | Investment Casting |
| Sanitary Design | PED97/23/EC(CE0035) Approved |
| Casting Approved AD2000-WO | Inspection Testing: API598,EN12266 |
| Thread: ASME B1.20.1 BS21.DIN2999/259,ISO228-1, JIS B 0203,ISO7/1 | |

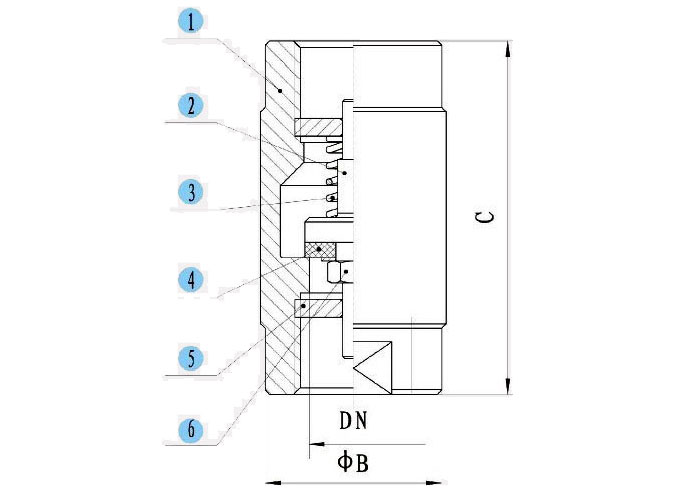

MATERIAL LIST
| ITEM | DESIGNATION | MATERIAL |
| 1 | BODY | CF8/CF8M |
| 2 | STEM | CF8/CF8M |
| 3 | SPRING | SUS304/SUS316 |
| 4 | SEAT | PTFE |
| 5 | STOPPER | SUS304/SUS316 |
| 6 | NUT | SUS304 |
DIMENSION TABLE
| SIZE ITEM | 1/4\\\'\\\' | 3/8\\\'\\\' | 1/2\\\'\\\' | 3/4\\\'\\\' | 1\\\'\\\' | 11/4\\\'\\\' | 11/2\\\'\\\' | 2\\\'\\\' | 21/2\\\'\\\' | 3\\\'\\\' |
| DN | 8 | 10 | 15 | 20 | 25 | 32 | 38 | 50 | 65 | 76 |
| B | 21 | 24 | 31 | 38 | 48 | 52 | 62 | 76 | 96 | 118 |
| C | 60 | 65 | 80 | 80 | 90 | 95 | 110 | 118 | 135 | 145 |
