FEATURES
| JIS 10K | Full Port |
| Investment Casting | Blow-out Proof Stem |
| ISO5211 Mounting Pad | PED97/23/EC(CE0035) Approved |
| Casting Approved AD2000-WO | Inspection Testing: JIS B2003, API598 |
| Design: JIS B2002 End Flange: JIS B2238 | |
MATERIAL LIST
| ITEM | DESIGNATION | MATERIAL |
| 1 | BODY | SCS13A/SCS14A |
| 2 | CAP | SCS13A/SCS14A |
| 3 | BALL | SCS13A/SCS14A |
| 4 | BALL SEAL | RPTFE |
| 5 | STEM | SUS304 |
| 6 | STEM PACKING | PTFE |
| 7 | O-RING | NBR |
| 8 | V-RING PACKING | PTFE |
| 9 | GLAND | SCS304 |
| 10 | BELIEVILLE WASHER | SUS301 |
| 11 | NUT | SCS304 |
| 12 | THRUST WASHER | SUS304 |
| 13 | WASHER | SUS304 |
| 14 | STOP BOLT | SUS304 |
| 15 | NUT | SUS304 |
| 16 | WASHER | SUS304 |
| 17 | HANDLE | SUS304 |
| 18 | PLASTIC COVER | PLASTIC |
| 19 | LOCKING | SUS304 |
| 20 | BODY GASKET | PTFE |
| 21 | NUT | SUS304 |
| 22 | BOLT | SUS304 |

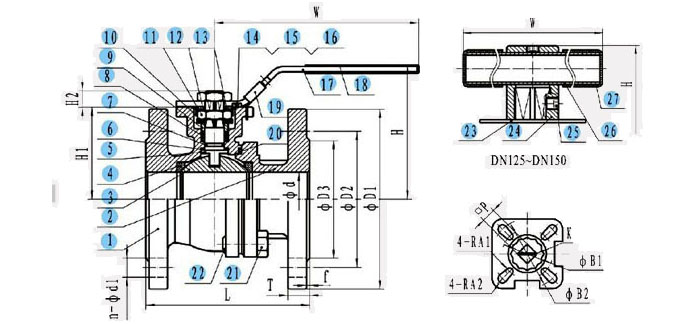

DIMENSION TABLE
| SIZE \\ ITEM | 15A | 20A | 25A | 32A | 40A | 50A | 65A | 80A | 100A |
| ?d | 15 | 20 | 25 | 32 | 38 | 50 | 65 | 76 | 100 |
| L | 115 | 120 | 125 | 130 | 140 | 150 | 170 | 180 | 190 |
| T | 16 | 18 | 18 | 18 | 18 | 20 | 18 | 20 | 20 |
| f | 2 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 3 |
| D1 | 95 | 105 | 115 | 140 | 150 | 165 | 185 | 200 | 220 |
| D2 | 65 | 75 | 85 | 100 | 110 | 125 | 145 | 160 | 180 |
| D3 | 45 | 58 | 68 | 78 | 88 | 102 | 122 | 138 | 158 |
| n | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 | 8 |
| ?d1 | 14 | 14 | 14 | 18 | 18 | 18 | 18 | 18 | 18 |
| H1 | 48 | 53 | 58.5 | 71 | 76 | 84.5 | 101.5 | 111.5 | 141 |
| H2 | 8 | 8 | 11 | 11 | 14 | 14 | 17 | 17 | 22 |
| H | 80 | 85 | 95 | 108 | 114 | 124 | 148 | 158 | 191 |
| W | 140 | 140 | 160 | 160 | 185 | 185 | 230 | 230 | 230 |
| K | M12*1.5 | M12*1.5 | M14*1.5 | M14*1.5 | M18*1.5 | M18*1.5 | M22*1.5 | M22*1.5 | M28*2 |
| P | 9 | 9 | 11 | 11 | 14 | 14 | 17 | 17 | 22 |
| A1 | 3 | 3 | 3 | 3 | 3.5 | 3.5 | 4.5 | 4.5 | |
| A2 | 3 | 3 | 3.5 | 3.5 | 4.5 | 4.5 | 5.5 | 5.5 | M10 |
| B1 | 36 | 36 | 42 | 42 | 50 | 50 | 70 | 70 | |
| B2 | 42 | 42 | 50 | 50 | 70 | 70 | 102 | 102 | 102 |
