FEATURES
| ANSI CLASS 150 | Full Port |
| Investment Casting | Blow-out Proof Stem |
| ISO5211 Mounting Pad | PED97/23/EC(CE0035) Approved |
| Casting Approved AD2000-WO | Inspection Testing:AP1598 |
| DEsign:ASME B16.34 End Flange:ASME B16.5 | |

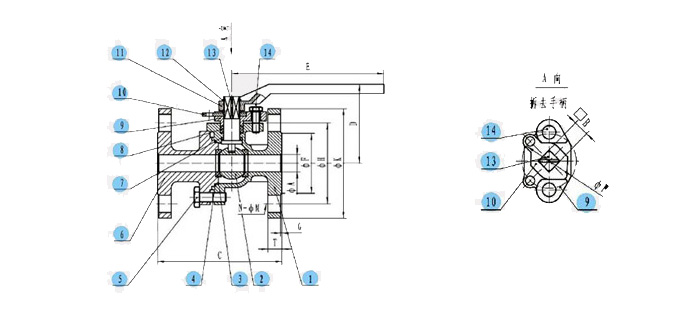

MATERIAL LIST
| ITEM | DESIGNATION | MATERIAL |
| 1 | BODY | CF8/CF8M |
| 2 | BALL | CF8/CF8M |
| 3 | BALL SEAT | RPTFE |
| 4 | BODY SEAL | PTFE |
| 5 | BOLT | SUS304 |
| 6 | CAP | CF8/CF8M |
| 7 | STEM SEAL | PTFE |
| 8 | SEAL PACKING | PTFE |
| 9 | GLAND | CF8 |
| 10 | STOPPER | SUS304 |
| 11 | HANDLE | CF8 |
| 12 | SNAP RING | SUS304 |
| 13 | STEM | SUS304 |
| 13 | BOLT | SUS304 |
DIMENSION TABLE
| SIZE \\ ITEM | A | B | D | E | F | F | H | K | T | G | N | M | C |
| 1/2 | 15 | 11 | 73 | 130 | 42 | 35 | 60.5 | 89 | 11 | 2 | 4 | 15 | 108 |
| 3/4 | 20 | 11 | 76 | 130 | 42 | 43 | 70 | 98 | 11 | 2 | 4 | 15 | 117 |
| 1 | 25 | 14 | 86 | 160 | 50 | 51 | 79.5 | 108 | 12 | 2 | 4 | 15 | 127 |
| 11/4 | 32 | 14 | 91 | 160 | 50 | 64 | 89 | 117 | 13 | 2 | 4 | 15 | 140 |
| 11/2 | 38 | 17 | 119 | 200 | 70 | 73 | 98.5 | 127 | 15 | 2 | 4 | 15 | 165 |
| 2 | 50 | 17 | 127 | 200 | 70 | 92 | 120.5 | 152 | 16 | 2 | 4 | 19 | 178 |
| 21/2 | 65 | 22 | 136 | 200 | 102 | 105 | 139.5 | 178 | 18 | 2 | 4 | 19 | 190 |
| 3 | 76 | 22 | 164 | 325 | 102 | 127 | 152.5 | 190 | 19 | 2 | 4 | 19 | 203 |
| 4 | 94 | 22 | 178 | 325 | 102 | 157 | 190.5 | 229 | 24 | 2 | 8 | 19 | 229 |
