FEATURES
| 1000PSI/PN63 | Full Port |
| Investment Casting | Blow-out Proof Stem |
| Locking Device Handle(Option) | PED97/23/EC(CE0035) Approved |
| Casting Approved AD2000-WO | Inspection Testing:API598,EN12266 |
| Clamp End; ISO2852-1993 | |

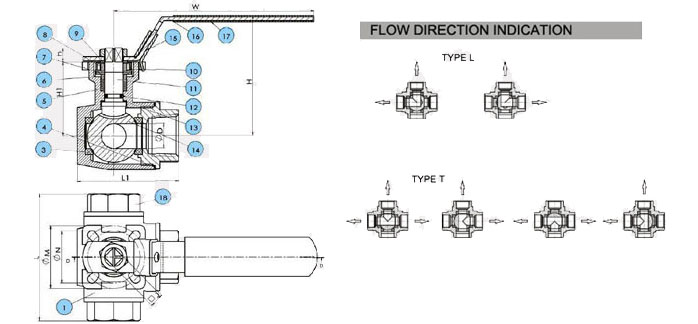

MATERIAL LIST
| ITEM | DESIGNATION | MATERIAL |
| 1 | BODY | CF8/CF8M |
| 2 | CAP(A) | CF8/CF8M |
| 3 | BALL SEAT | RPTFE |
| 4 | BODY PACKING | PTFE |
| 5 | STEM PACKING | PTFE |
| 6 | GLAND NUT | SUS304 |
| 7 | SPRING WASHER | SUS301 |
| 8 | NUT | SUS304 |
| 9 | WASHER | SUS304 |
| 10 | THRUST WASHER | SUS304 |
| 11 | STEM | SCS304 |
| 12 | O-RING | NBR |
| 13 | STEM SEAL | PTFE |
| 14 | BALL | CF8/CF8M |
| 15 | LOCKING | SUS304 |
| 16 | HANDLE | SUS304 |
| 17 | PLASTIC COVER | PLASTIC |
| 18 | CAP(B) | CF8/CF8M |
DIMENSION TABLE
| SIZE ITEM | 1/4\'\' | 3/8\'\' | 1/2\'\' | 3/4\'\' | 1\'\' | 11/4\'\' | 11/2\'\' | 2\'\' |
| D | 9 | 11 | 12.5 | 16 | 20 | 25 | 32 | 38 |
| W | 139 | 139 | 139 | 139 | 160 | 160 | 185 | 185 |
| H | 73 | 73 | 73 | 80 | 95 | 98 | 110 | 119 |
| H1 | 42 | 42 | 42 | 49 | 59.5 | 63 | 73.5 | 82.8 |
| h | 9 | 9 | 9 | 9 | 11 | 11 | 14 | 14 |
| M | 36 | 36 | 36 | 36 | 42 | 42 | 50 | 50 |
| N | 42 | 42 | 42 | 42 | 50 | 50 | 70 | 70 |
| J | 9 | 9 | 9 | 9 | 11 | 11 | 14 | 14 |
| L | 79 | 79 | 79 | 83 | 104 | 111 | 126 | 147 |
| L1 | 64 | 64 | 64 | 68 | 82 | 90 | 106 | 123 |
