FEATURES
| 1000PSI/PN63 | Full Port |
| Investment Casting | Blow-out Proof Stem |
| Locking Device Handle(Option) | PED97/23/EC(CE0035) Approved |
| Casting Approved AD2000-WO | Inspection Testing:API598,EN12266 |
| Clamp End; ISO2852-1993 | |

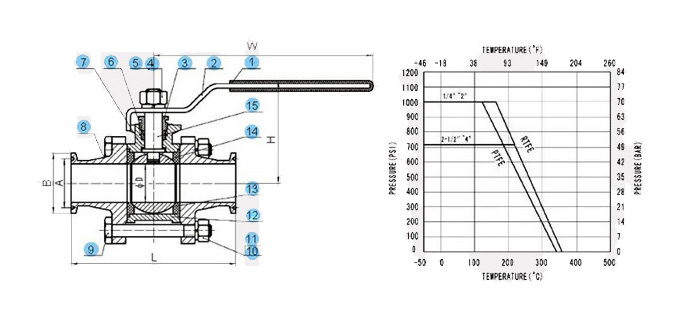

MATERIAL LIST
| ITEM | DESIGNATION | MATERIAL |
| 1 | HANDLE SLEEVE | PLASTIC |
| 2 | HANDLE | SUS304 |
| 3 | GLAND NUT | SUS304 |
| 4 | STEM NUT | SUS304 |
| 5 | THRUST WASHER | SUS304 |
| 6 | STEM PACKING | PTFE |
| 7 | SEAL | PTFE |
| 8 | CAP | CF8/CF8M |
| 9 | BOLT | SUS304 |
| 10 | NUT | SUS304 |
| 11 | THRUST WASHER | SCS304 |
| 12 | BODY | CF8/CF8M |
| 13 | SEAT | RPTFE |
| 14 | BALL | CF8/CF8M |
| 15 | STEM | SUS304 |
| 16 | LOCKING | SUS304 |
DIMENSION TABLE
| SIZE ITEM | 1/4\\\'\\\' | 3/8\\\'\\\' | 1/2\\\'\\\' | 3/4\\\'\\\' | 1\\\'\\\' | 11/4\\\'\\\' | 11/2\\\'\\\' | 2\\\'\\\' | 21/2\\\'\\\' | 3\\\'\\\' | 4\\\'\\\' |
| d | 12.5 | 12.5 | 15 | 20 | 25 | 32 | 38 | 50 | 65 | 76 | 94 |
| D | 15.2 | 17.2 | 21.3 | 26.9 | 34.9 | 43.5 | 50 | 61.5 | 77 | 90 | 115 |
| H | 48 | 48 | 50 | 52 | 65 | 70 | 85 | 93 | 116 | 125 | 180 |
| W | 105 | 105 | 105 | 126 | 144 | 144 | 189 | 189 | 224 | 224 | 251 |
| L | 72 | 72 | 72 | 80 | 85 | 105 | 113 | 134 | 170 | 186 | 220 |
| L1 | 225 | 225 | 225 | 225 | 245 | 256 | 260 | 275 | 334 | 345 | 365 |
