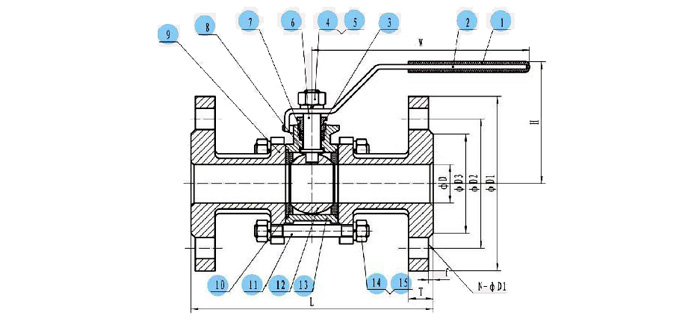

MATERIAL LIST
| ITEM | DESIGNATION | MATERIAL |
| 1 | COVER | PLASTIC |
| 2 | HANDLE | SUS304 |
| 3 | GLAND | SUS304 |
| 4 | STEM NUT | SUS304 |
| 5 | THRUST WASHER | SUS304 |
| 6 | STEM | SUS304 |
| 7 | STEM PACKING | PTFE |
| 8 | STEM WASHER | PTFE |
| 9 | CAP | CF8/CF8M |
| 10 | SEAT | RPTFE |
| 11 | BOLT | SCS304 |
| 12 | BALL | CF8/CF8M |
| 13 | BODY | CF8/CF8M |
| 14 | NUT | SUS304 |
| 15 | THRUST WASHER | SUS304 |
DIMENSION TABLE
| SIZE ITEM | 1/2\\\'\\\' | 3/4\\\'\\\' | 1\\\'\\\' | 11/4\\\'\\\' | 11/2\\\'\\\' | 2\\\'\\\' | 21/2\\\'\\\' | 3\\\'\\\' | 4\\\'\\\' |
| D | 15 | 20 | 25 | 32 | 38 | 50 | 65 | 76 | 94 |
| D1 | 95 | 105 | 115 | 140 | 150 | 165 | 185 | 200 | 235 |
| D2 | 65 | 75 | 85 | 100 | 110 | 125 | 145 | 160 | 165 |
| D3 | 45 | 58 | 68 | 78 | 88 | 102 | 122 | 138 | 162 |
| F | 2 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 3 |
| T | 16 | 18 | 18 | 18 | 18 | 20 | 22 | 24 | 24 |
| N-?d | 4-14 | 4-14 | 4-14 | 4-18 | 4-18 | 4-18 | 8-18 | 8-18 | 8-22 |
| L | 130 | 150 | 160 | 180 | 200 | 230 | 290 | 310 | 350 |
| W | 72 | 78 | 90 | 95 | 107 | 122 | 155 | 164 | 170 |
| H | 135 | 135 | 152 | 152 | 188 | 188 | 233 | 233 | 233 |
