FEATURES
| 1000PSI/PN63 | Full Port |
| Investment Casting | Blow-out Proof Stem |
| Locking Device Handle(Option) | PED97/23/EC(CE0035) Approved |
| Casting Approved AD2000-WO | Inspection Testing:API598,EN12266 |
| Clamp End; ISO2852-1993 | |

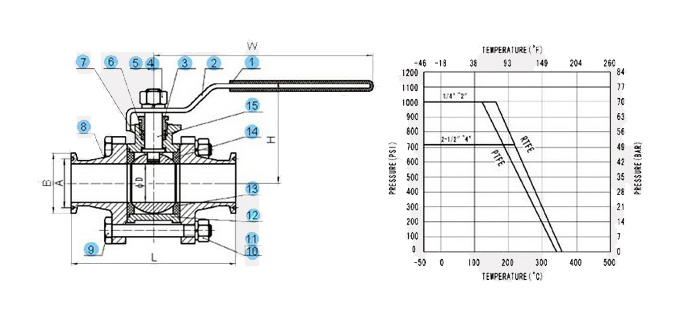

MATERIAL LIST
| ITEM | DESIGNATION | MATERIAL |
| 1 | PLASTIC COVER | PLASTIC |
| 2 | HANDLE | SUS304 |
| 3 | GLAND NUT | SUS304 |
| 4 | STEM NUT | SUS304 |
| 5 | THRUST WASHER | SUS304 |
| 6 | STEM PACKING | PTFE |
| 7 | SEAL | PTFE |
| 8 | CAP | CF8/CF8M |
| 9 | BOLT | SUS304 |
| 10 | NUT | SUS304 |
| 11 | THRUST WASHER | SCS304 |
| 12 | BODY | CF8/CF8M |
| 13 | SEAT | RPTFE |
| 14 | BALL | CF8/CF8M |
| 15 | STEM | SUS304 |
DIMENSION TABLE
| SIZE ITEM | 1/2\'\' | 3/4\'\' | 1\'\' | 11/2\'\' | 2\'\' | 21/2\'\' | 3\'\' | 4\'\' |
| D | 9.6 | 16 | 22.5 | 35 | 47 | 60 | 72 | 97 |
| A | 27.5 | 27.5 | 43.5 | 43.5 | 56.5 | 70.5 | 83.5 | 110 |
| B | 34 | 34 | 50.5 | 50.5 | 64 | 77.7 | 91 | 119 |
| H | 50 | 56 | 67 | 93 | 101 | 118 | 128 | 168 |
| W | 105 | 126 | 144 | 189 | 189 | 224 | 224 | 298 |
| L | 90 | 90 | 100 | 125 | 150 | 190 | 220 | 270 |
