FEATURES
| 1000PS/PN63 | Full Port |
| Investment Casting | Blow-out Proof Stem |
| ISO5211 Mounting Pad | PED97/23/EC(CE0035) Approved |
| Casting Approved AD2000-WO | Inspection Testing: EN12266, API598 |
| Thread: ASME B1.20.1 BS21.DIN2999/259, ISO228-1,JIS B 0203,ISO7/1 | |

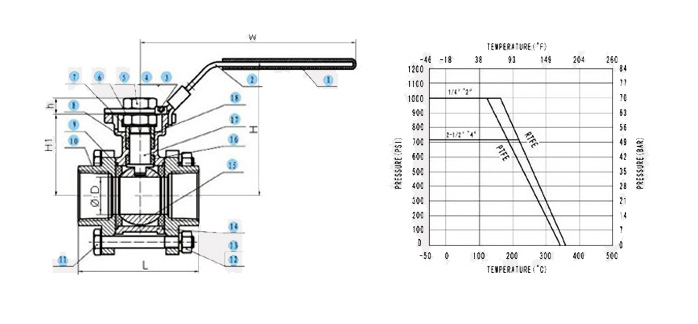

MATERIAL LIST
| ITEM | DESIGNATION | MATERIAL |
| 1 | PLASTIC COVER | PLASTIC |
| 2 | HANDLE | SCS304 |
| 3 | BOLT | SCS304 |
| 4 | NUT | SUS304 |
| 5 | STEM NUT | SUS304 |
| 6 | PACKING RING | SUS304 |
| 7 | THRUST WASHER | SUS304 |
| 8 | STEM PACKING | PTFE |
| 9 | BODY SEAL | PTFE |
| 10 | CAP | CF8/CF8M |
| 11 | BOLT | SUS304 |
| 12 | THRUST WASHER | SUS304 |
| 13 | NUT | SUS304 |
| 14 | BODY | CF8/CF8M |
| 15 | BALL | CF8/CF8M |
| 16 | STEM SEAL | PTFE |
| 17 | STEM | SUS304 |
| 18 | GLAND RING | SUS304 |
DIMENSION TABLE
| SIZE ITEM | 1/4\'\' | 3/8 | 1/2\'\' | 3/4\'\' | 1\'\' | 11/4\'\' | 11/2\'\' | 2\'\' | 21/2\'\' | 3\'\' | 4\'\' |
| D | 11 | 12.5 | 15 | 20 | 25 | 32 | 38 | 50 | 65 | 76 | 94 |
| H | 69 | 69 | 72 | 78 | 90 | 95 | 105 | 122 | 155 | 164 | 168 |
| W | 140 | 140 | 140 | 140 | 162 | 162 | 188 | 188 | 233 | 233 | 233 |
| H1 | 38.4 | 38.4 | 42 | 48 | 55 | 60 | 70 | 85 | 109 | 118 | 115.5 |
| H | 9 | 9 | 9 | 9 | 11 | 11 | 15 | 15 | 20 | 20 | 20 |
| 9 | 9 | 9 | 9 | 11 | 11 | 14 | 14 | 17 | 17 | 17 | |
| D3 | F03 | F03 | F03 | F03 | F04 | F04 | F05 | F05 | F07 | F07 | F07 |
| F04 | F04 | F04 | F04 | F05 | F05 | F07 | F07 | F10 | F10 | F10 | |
| L | 64 | 64 | 72 | 80 | 85 | 105 | 113 | 132 | 170 | 186 | 226 |
