FEATURES
| 1000PSI/PN63 | Full Port |
| Investment Casting | Blow-out Proof Stem |
| Locking Device Handle(Option) | PED97/23/EC(CE0035) Approved |
| Casting Approved AD2000-WO | Inspection Testing: API598,EN12266 |
| Thread:ASME B1.20.1 BS21.DIN2999/259,ISO228-1,JIS B 0203,IS07/1 | |

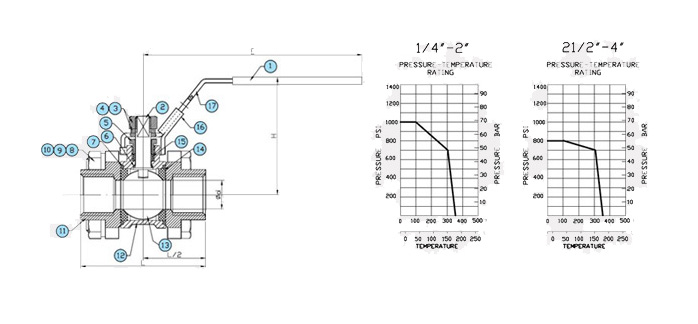

MATERIAL LIST
| ITEM | DESIGNATION | MATERIAL |
| 1 | HANDLE COVER | PLASTIC |
| 2 | STEM | SUS304/316 |
| 3 | HAND WASHER | SUS304 |
| 4 | HAND NUT | SUS304 |
| 5 | GLAND | SUS304 |
| 6 | THRUST WASHER | PTFE |
| 7 | END SEAL | PTFE |
| 8 | BOLT | SUS304 |
| 9 | BOLT NUT | SCS304 |
| 10 | BOLT WASHER | SUS304 |
| 11 | END CAP | CF8/CF8M |
| 12 | BODY | CF8/CF8M |
| 13 | BALL | CF8/CF8M |
| 14 | BALL SEAT | PTFE |
| 15 | STEM PACKING | PTFE |
| 16 | LOCK DEVICE | SUS304 |
| 17 | HANDLE | SUS304 |
DIMENSION TABLE
| SIZE ITEM | 1/4\'\' | 3/8\'\' | 1/2\'\' | 3/4\'\' | 1\'\' | 11/4\'\' | 11/2\'\' | 2\'\' | 21/2\'\' | 3\'\' | 4\'\' |
| d | 11.6 | 12.5 | 15 | 20 | 25 | 32 | 38 | 50 | 65 | 76 | 100 |
| L | 61 | 61 | 63 | 72 | 82.5 | 97.5 | 108.5 | 124 | 162 | 175 | 216 |
| H | 49 | 49 | 57 | 62 | 72 | 78 | 91 | 102 | 122 | 132 | 177 |
| W | 103 | 103 | 108 | 108 | 129 | 129 | 160 | 160 | 230 | 230 | 335 |
