FEATURES
| 1000PSI/PN63 | Full Port |
| Investment Casting | ISO5211 Mounting Pad |
| Blow-out Proof Stem | Locking Device Handle |
| Fire Safe:AP1607 | Anti-Static Devices |
| Casting Approved AD2000-Wo | Inspection Testing:AP1598,EN12266 |
| Thread:ASME B1.20.1 BS21.DIN2999/259,ISO228-1,JIS B 0203,ISO7/1 | |

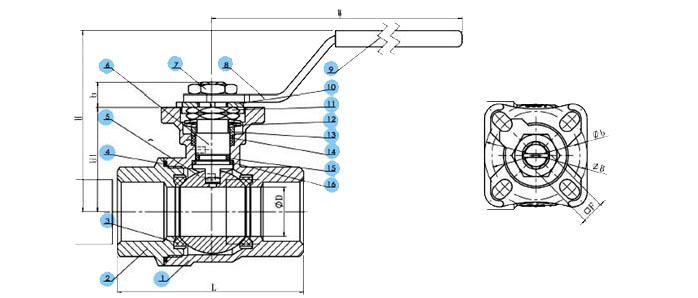

MATERIAL LIST
| ITEM | DESIGNATION | MATERIAL |
| 1 | BODY | CF8/CF8M |
| 2 | CAP | CF8/CF8M |
| 3 | SEAT | RPTFE |
| 4 | BODY SEAL | PTFE |
| 5 | BALL | CF8/CF8M |
| 6 | STEM | SUS304 |
| 7 | STEM NUT | SUS304 |
| 8 | HANDLE | SUS304 |
| 9 | PLASTIC COVER | PLASTIC |
| 10 | WASHER | SUS304 |
| 11 | STEM NUT | SUS304 |
| 12 | SPRING WASHER | SUS301 |
| 13 | GLAND RING | SUS304 |
| 14 | STEM PACKING | PTFE |
| 15 | O-RING | NBR |
| 16 | THRUST WASHER | PTFE |
DIMENSION TABLE
| SIZE \\ ITEM | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 11/4 | 11/2 | 2 |
| D | 11 | 12.5 | 15 | 20 | 25 | 32 | 40 | 50 |
| H | 60.5 | 60.5 | 63 | 73.5 | 76 | 82.5 | 94 | 103 |
| H1 | 36.5 | 36.5 | 37.8 | 42.5 | 45 | 51.5 | 59.5 | 68.5 |
| h | 7 | 7 | 7 | 10 | 10 | 10 | 12 | 12 |
| W | 100 | 100 | 100 | 137 | 137 | 137 | 205 | 205 |
| d | 36 | 36 | 36 | 36 | 42 | 42 | 50 | 50 |
| B | 42 | 42 | 42 | 42 | 50 | 50 | 70 | 70 |
| F | 9 | 9 | 9 | 9 | 9 | 9 | 11 | 11 |
| L | 50 | 50 | 55 | 76 | 83 | 100 | 103 | 136 |
