FEATURES
| 1000PSI/PN63 | Full Port |
| Investment Casting | Blow-out Proof Stem |
| Locking Device Handle(Option) | PED97/23/EC(CE0035) Approved |
| Casting Approved AD2000-WO | Inspection Testing:AP1598,EN12266 |
| Thread:ASME B1.20.1 BS21.DIN2999/259,ISO228-1,JIS B 0203,ISO7/1 | |

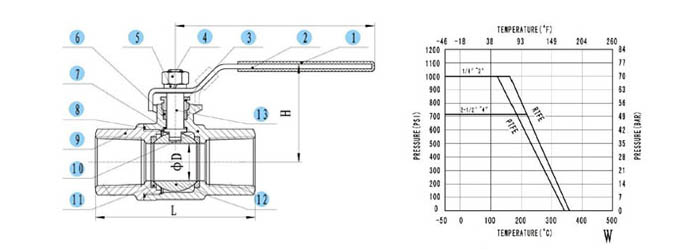

MATERIAL LIST
| ITEM | DESIGNATION | MATERIAL |
| 1 | PLASTIC COVER | PLASTIC |
| 2 | HANDLE | SUS304 |
| 3 | GLAND NUT | SUS304 |
| 4 | STEM NUT | SUS304 |
| 5 | THRUST WASHER | SUS304 |
| 6 | STEM PACKING | PTFE |
| 7 | STEM SEAL | PTFE |
| 8 | BODY SEAL | PTFE |
| 9 | CAP | CF8/CF8M |
| 10 | BODY | CF8/CF8M |
| 11 | SEAT | RPTFE |
| 12 | BALL | CF8/CF8M |
| 13 | STEM | SUS304 |
DIMENSION TABLE
| SIZE \\ ITEM | 3/8 | 1/2 | 3/4 | 1 | 11/4 | 11/2 | 2 |
| D | 12.5 | 15 | 20 | 25 | 32 | 38 | 50 |
| d | 10.5 | 13.6 | 18.2 | 23 | 31 | 36 | 48 |
| W | 103 | 103 | 126 | 144 | 144 | 190 | 190 |
| H | 48 | 50 | 57 | 67 | 72 | 93 | 100 |
| L | 60 | 78.5 | 88.5 | 100 | 110.5 | 121 | 141.5 |
