FEATURES
| 1000PSI/PN63 | Full Port |
| Investment Casting | Blow-out Proof Stem |
| Locking Device Handle(Option) | PED97/23/EC(CE0035) Approved |
| Casting Approved AD2000-WO | Inspection Testing:AP1598,EN12266 |
| Thread:ASME B1.20.1 BS21.DIN2999/259,ISO228-1,JIS B 0203,ISO7/1 | |

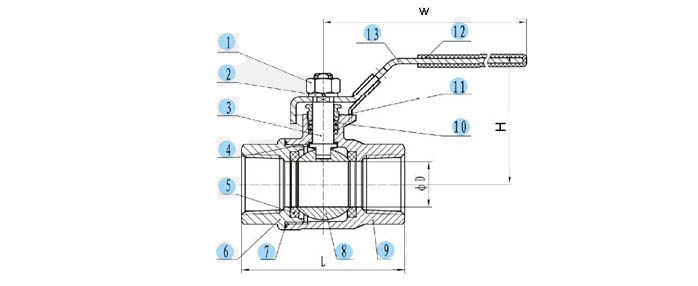

MATERIAL LIST
| ITEM | DESIGNATION | MATERIAL |
| 1 | STEM NUT | SUS304 |
| 2 | THRUST WASHER | SUS304 |
| 3 | STEM | SUS304 |
| 4 | STEM SEAL | PTFE |
| 5 | SEAT | RPTFE |
| 6 | CAP | CF8/CF8M |
| 7 | BODY SEAT | PTFE |
| 8 | BALL | CF8/CF8M |
| 9 | BODY | CF8/CF8M |
| 10 | STEM PACKING | PTFE |
| 11 | GLAND NUT | SUS304 |
| 12 | PLASTIC COVER | PLASTIC |
| 13 | HANDLE | SUS304 |
DIMENSION TABLE
| SIZE \\ ITEM | 1/2 | 3/4 | 1 | 11/4 | 11/2 | 2 |
| D | 15 | 20 | 25 | 32 | 38 | 50 |
| W | 126 | 144 | 190 | 190 | 233 | 232 |
| H | 62 | 75 | 83 | 89 | 100 | 110 |
| L | 65 | 75 | 90 | 105 | 120 | 140 |
