FEATURES
| 1000PSI/PN63 | Reduce Port |
| Investment Casting | Blow-out Proof Stem |
| PED/97/23/EC(CE0036) Approved | W.P:1/4-21000psi,2.1/2-4800psi |
| PTFE seats & seals | inspection Testing:API598,EN12266 |
| Thread:ASME B1.20.1 BS21.DIN2999/259,ISO228-1,JIS B 0203,ISO7/1 | |

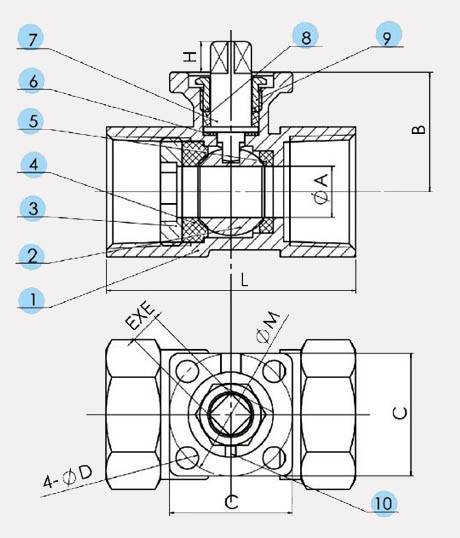

MATERIAL LIST
| ITEM | DESIGNATION | MATERIAL |
| 1 | BODY | CF8/CF8M |
| 2 | BALL | CF8/CF8M |
| 3 | CAP | CF8/CF8M |
| 4 | BALL SEAT(A) | RPTFE |
| 5 | BALL SEAT(B) | RPTFE |
| 6 | THRUST WASHER | PTFE |
| 7 | STEM | SUS304 |
| 8 | STEM PACKING | PTFE |
| 9 | GLAND | SUS304 |
| 10 | BOLT | SUS304 |
| ITEM SIZE | 3/8\'\' | 1/2\'\' | 3/4\'\' | 1\'\' | 11/4\'\' | 11/2\'\' | 2\'\' |
| A | 7 | 9.2 | 12.5 | 15 | 20 | 25 | 32 |
| B | 24 | 26 | 32 | 35 | 38 | 42 | 50 |
| C | 36 | 36 | 36 | 36 | 36 | 50 | 50 |
| H | 9 | 9 | 9 | 9 | 9 | 11 | 11 |
| D | 6.5 | 6.5 | 6.5 | 6.5 | 6.5 | 7 | 7 |
| M | 36 | 36 | 36 | 36 | 36 | 50 | 50 |
| E | 9 | 9 | 9 | 9 | 9 | 11 | 11 |
| L | 45 | 50 | 60 | 73 | 78 | 89 | 100 |
