FEATURES
| The thread ends conform to | ASME B1.20.1(NPT) |
| DIN2999&BS21 | ISO228/1&ISO7/1 |
| Dimension conform to | |
| ISO4144 150LBS Material conform to ASTM A351-CF8M/1.4408 ASTM A351-CF8/1.4401 AISI 304, 316 | |

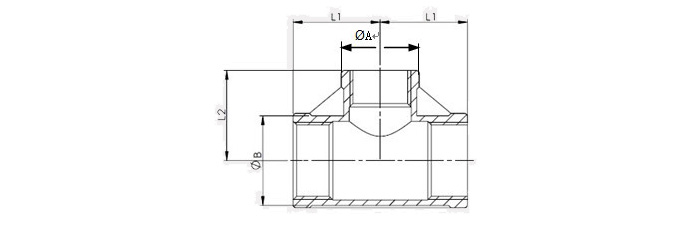

MATERIAL LIST
SIZE | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 1 1/4 | 1 1/2 | 2 | 2 1/2 | 3 | 4 | |||||||||
1/8 | 1/4 | 1/4 | 3/8 | 3/8 | 1/2 | 1/2 | 3/4 | 3/4 | 1 | 11/4 | 11/2 | 11/4 | 11/2 | 11/2 | 2 | 2 | 21/2 | 21/2 | 3 | |
L1 | 18 | 20 | 24 | 26 | 28 | 29 | 32 | 34 | 38 | 40 | 41 | 45 | 48 | 52 | 55 | 60 | 62 | 72 | 78 | 83 |
L2 | 18 | 22 | 24 | 25 | 28 | 30 | 33 | 35 | 40 | 42 | 45 | 48 | 54 | 55 | 62 | 65 | 72 | 75 | 90 | 91 |
A | 13 | 16.5 | 16.5 | 20 | 20 | 24.5 | 24.5 | 30 | 30 | 37.5 | 37.5 | 46.5 | 46.5 | 53 | 53 | 65.5 | 65.5 | 82 | 82 | 95.5 |
B | 16.5 | 20 | 24.5 | 30 | 37.5 | 46.5 | 53 | 65.5 | 82 | 95.5 | 121.5 | |||||||||
