FEATURES
| The thread ends conform to | ASME B1.20.1(NPT) |
| DIN2999&BS21 | ISO228/1&ISO7/1 |
| Dimension conform to | |
| ISO4144 150LBS Material conform to ASTM A351-CF8M/1.4408 ASTM A351-CF8/1.4401 AISI 304, 316 | |
MATERIAL LIST

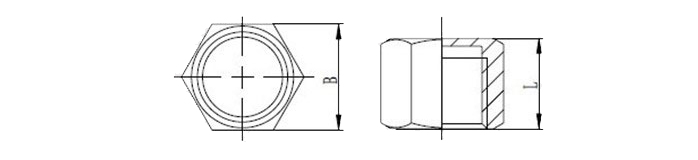

SIZE | 1/8 | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 1-1/4 | 1-1/2 | 2 | 2 1/2 | 3 | 4 |
B | 13 | 16.5 | 20 | 24.5 | 30 | 37 | 46.5 | 53 | 65 | 82 | 95.5 | 121.5 |
L | 12.5 | 16 | 16.5 | 21 | 22.5 | 26 | 29 | 29 | 33.5 | 38.5 | 42 | 48.5 |
