FEATURES
| The thread ends conform to | ASME B1.20.1(NPT) |
| DIN2999&BS21 | ISO228/1&ISO7/1 |
| Dimension conform to | |
| ISO4144 150LBS Material conform to ASTM A351-CF8M/1.4408 ASTM A351-CF8/1.4401 AISI 304, 316 | |
MATERIAL LIST

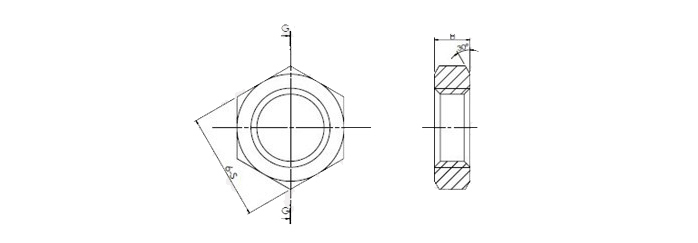

SIZE | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 1 1/4 | 1 1/2 | 2 |
H | 6 | 6 | 7 | 7 | 9 | 11 | 11 | 13 |
S | 18 | 24 | 30 | 34 | 42.5 | 52 | 58 | 72 |
