FEATURES
| The thread ends conform to | ASME B1.20.1(NPT) |
| DIN2999&BS21 | ISO228/1&ISO7/1 |
| Dimension conform to | |
| ISO4144 150LBS Material conform to ASTM A351-CF8M/1.4408 ASTM A351-CF8/1.4401 AISI 304, 316 | |
MATERIAL LIST

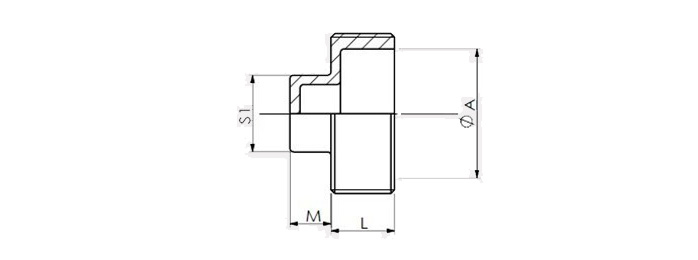

SIZE | 1/8 | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 1 1/4 | 1 1/2 | 2 | 2 1/2 | 3 | 4 |
A | 5.5 | 8 | 11.5 | 15 | 20.5 | 26.2 | 34.5 | 40 | 51 | 65.5 | 77.5 | 101.5 |
L | 6 | 8.5 | 9 |
