FEATURES
| The thread ends conform to | ASME B1.20.1(NPT) |
| DIN2999&BS21 | ISO228/1&ISO7/1 |
| Dimension conform to | |
| ISO4144 150LBS Material conform to ASTM A351-CF8M/1.4408 ASTM A351-CF8/1.4401 AISI 304, 316 | |
MATERIAL LIST

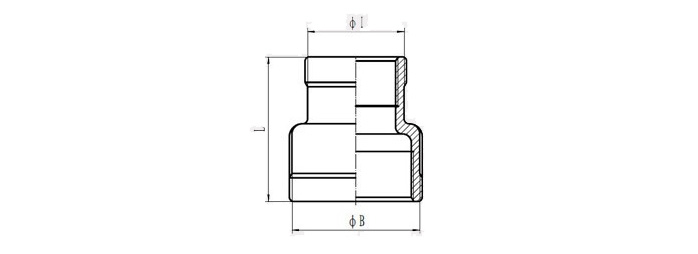

SIZE | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 1 1/4 | 1 1/2 | 2 | 2 1/2 | 3 | 4 | ||||||||||||
1/8 | 1/8 | 1/4 | 1/4 | 3/8 | 1/4 | 3/8 | 1/2 | 1/2 | 3/4 | 3/4 | 1 | 3/4 | 1 | 11/4 | 11/4 | 11/2 | 11/22 | 2 | 2 | 21/2 | 21/2 | 3 | |
I | 13 | 13 | 16.5 | 16.5 | 20 | 16.5 | 20 | 24.5 | 24.5 | 30 | 30 | 37.5 | 30 | 37.5 | 46.5 | 46.5 | 53 | 53 | 65.5 | 65.5 | 82 | 82 | 95.5 |
B | 16.5 | 20 | 24.5 | 30 | 37.5 | 46.5 | 53 | 65.5 | 81.5 | 95.5 | 121.5 | ||||||||||||
L | 25 | 26 | 34 | 36 | 42 | 48 | 52 | 58 | 65 | 72 | 94 | ||||||||||||
