FEATURES
| The thread ends conform to | ASME B1.20.1(NPT) |
| DIN2999&BS21 | ISO228/1&ISO7/1 |
| Dimension conform to | |
| ISO4144 150LBS Material conform to ASTM A351-CF8M/1.4408 ASTM A351-CF8/1.4401 AISI 304, 316 | |
MATERIAL LIST

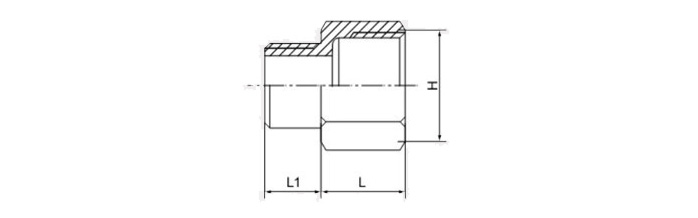

| SIZE | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 1-1/4 | ||||
| 1/8 | 1/4 | 1/4 | 3/8 | 3/8 | 1/2 | 1/2 | 1 | 3/4 | 1 | |
| L | 17 | 17.5 | 21 | 21 | 22.5 | 22.5 | 26 | 26 | 29 | 29 |
| L1 | 8 | 10.5 | 10.5 | 11 | 11 | 14.5 | 14.5 | 15.5 | 15.5 | 18 |
| H | 17 | 20.5 | 25 | 25 | 31 | 31 | 38 | 38 | 47 | 47 |
