FEATURES
| The thread ends conform to | ASME B1.20.1(NPT) |
| DIN2999&BS21 | ISO228/1&ISO7/1 |
| Dimension conform to | |
| ISO4144 150LBS Material conform to ASTM A351-CF8M/1.4408 ASTM A351-CF8/1.4401 AISI 304, 316 | |
MATERIAL LIST

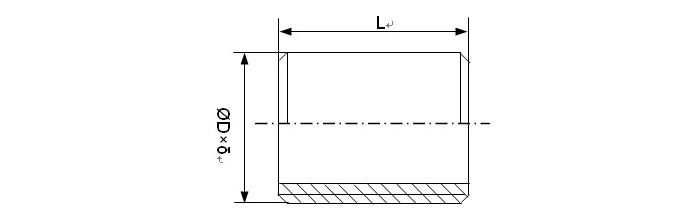

| SIZE | 1/8 | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 1-1/4 | 1-1/2 | 2 | 2-1/2 | 3 | 4 |
| L | 22 | 22 | 24 | 30 | 34 | 40 | 42 | 42 | 52 | 56 | 62 | 80 |
?D×δ（mm） | SCH40\\\\SCH80 | |||||||||||
