FEATURES
| The thread ends conform to | ASME B1.20.1(NPT) |
| DIN2999&BS21 | ISO228/1&ISO7/1 |
| Dimension conform to | |
| ISO4144 150LBS Material conform to ASTM A351-CF8M/1.4408 ASTM A351-CF8/1.4401 AISI 304, 316 | |
MATERIAL LIST

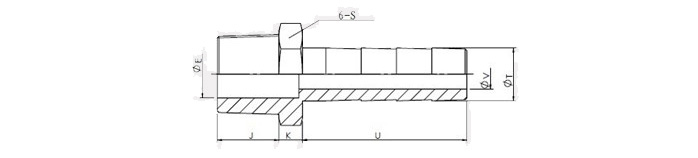

| SIZE | 1/8 | 3/8 | 1/2 | 3/4 | 1 | 1-1/4 | 1-1/2 | 2 | 2-1/2 | 3 | 1/4&1/2 | 3/8&1/2 | 1/2&3/4 | 1&3/4 | 1&1-1/4 |
| E | 8 | 11.5 | 15 | 20.5 | 26 | 34.5 | 40 | 51 | 65.5 | 77.5 | 8 | 11.5 | 15 | 26 | 26 |
| J | 10.5 | 11 | 14.5 | 15.5 | 18 | 20.5 | 20.5 | 25 | 27 | 30 | 10.5 | 11 | 14.5 | 18 | 18 |
| K | 4 | 5 | 5 | 5.5 | 6 | 6.5 | 6.5 | 7 | 7 | 7.5 | 5 | 5 | 5.5 | 5.5 | 6.5 |
| U | 28 | 33 | 38 | 45 | 52 | 52 | 56 | 60 | 65 | 70 | 38 | 38 | 45 | 45 | 52 |
| V | 5 | 7 | 10.5 | 15 | 22 | 27.5 | 34 | 45 | 59 | 71 | 10.5 | 10.5 | 15 | 15 | 27.5 |
| T | 9 | 11.5 | 15 | 20 | 27 | 33 | 39.5 | 52 | 67 | 80 | 15 | 15 | 20 | 20 | 33 |
| S | 15 | 18 | 22 | 28 | 35 | 44 | 50 | 61.5 | 78 | 90 | 18 | 18 | 22 | 35 | 35 |
| K | 4 | 5 | 5 | 5.5 | 6 | 6.5 | 6.5 | 7 | 7 | 7.5 | 5 | 5 | 5.5 | 5.5 | 6.5 |
