FEATURES
| The thread ends conform to | ASME B1.20.1(NPT) |
| DIN2999&BS21 | ISO228/1&ISO7/1 |
| Dimension conform to | |
| ISO4144 150LBS Material conform to ASTM A351-CF8M/1.4408 ASTM A351-CF8/1.4401 AISI 304, 316 | |
MATERIAL LIST

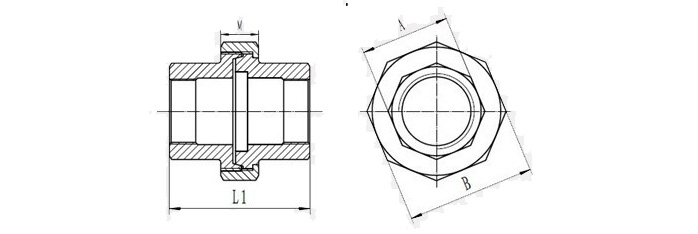

| SIZE | 1/8 | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 1-1/4 | 1-1/2 | 2 | 2-1/2 | 3 | 4 |
| A | 13 | 16.5 | 20 | 24.5 | 30 | 37.5 | 46.5 | 53 | 65.5 | 82 | 95.5 | 121.5 |
| B | 26 | 29 | 34 | 37 | 44 | 52.5 | 63 | 70 | 84 | 101.5 | 118 | 148.5 |
| L1 | 30 | 33.5 | 36.5 | 39.5 | 42.5 | 50 | 54 | 58 | 65 | 75 | 83 | 110 |
| M | 13 | 13.5 | 15 | 16 | 17 | 20 | 22 | 24 | 27 | 29.5 | 31 | 34 |
